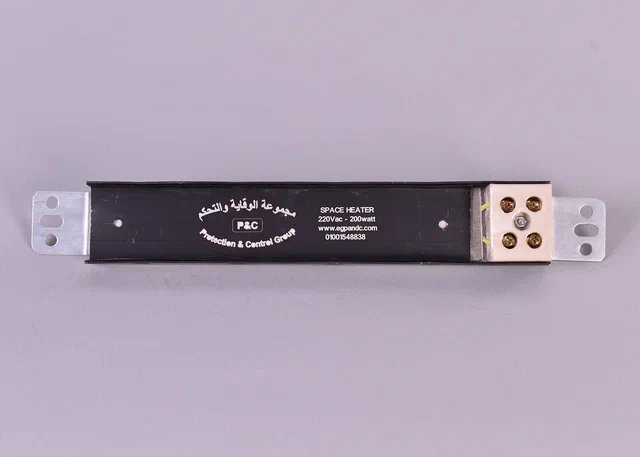

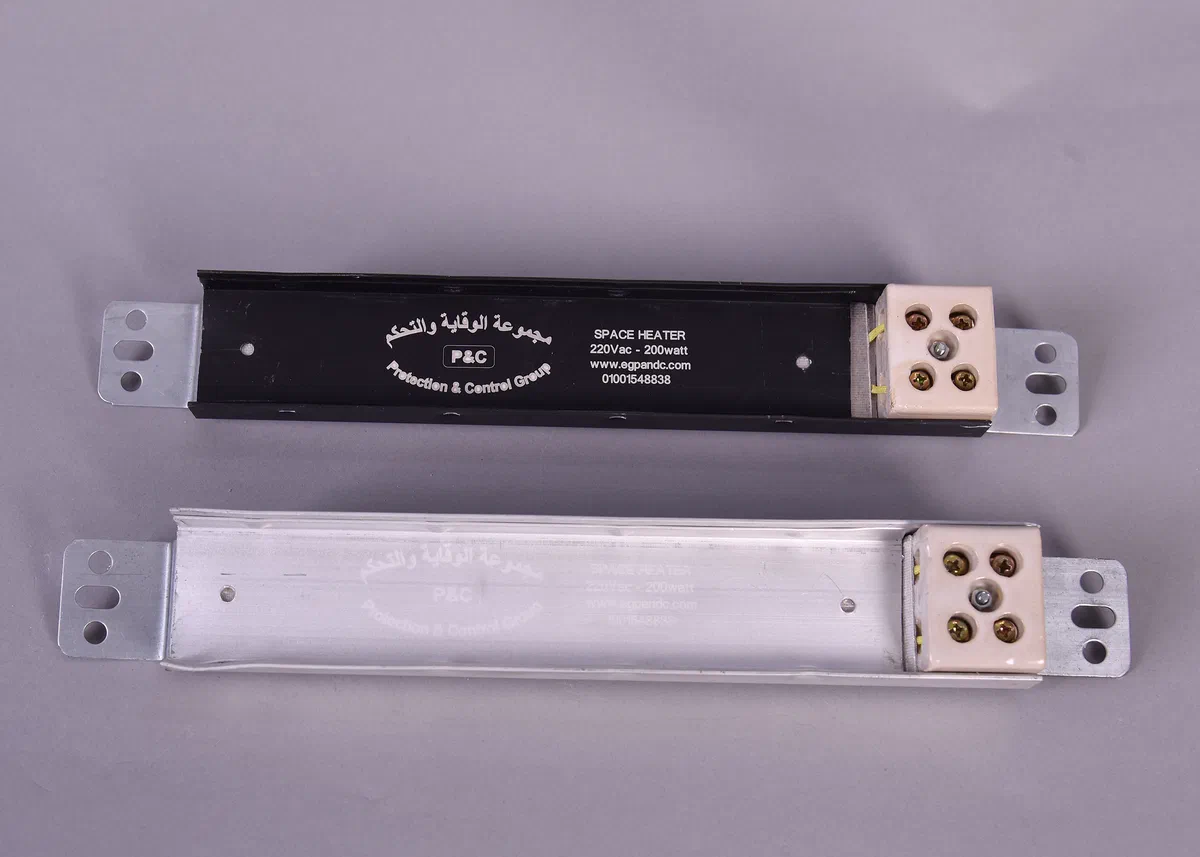

For enclosures and switchboards, to prevent condensation, corrosion of electrical components and leakage current in medium- and low-voltage panels. Built for endurance and vibration resistance: it withstands mechanical shock and vibration, dissipates heat quickly into the air, holds a close tolerance on its electrical rating and keeps a high insulation resistance even in extremely humid conditions. Every heater is individually tested.
Ratings
- Power ratings
- 100 W · 200 W
- Supply
- 220 V AC
- Power tolerance
- ± 10 %
- Insulation level
- 2 kV for 1 min
Construction

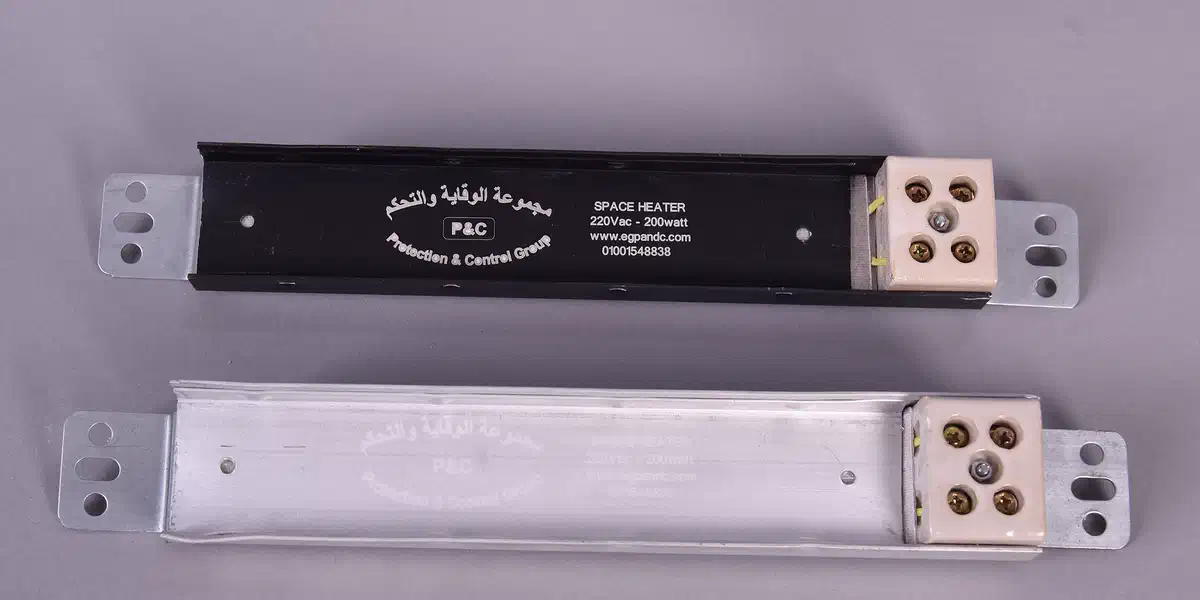

- Body
- Heat-sink-grade extruded aluminium, plain or anodised
- Heating element
- Nichrome
- Insulation
- Mica, clamped between the aluminium parts
- Connection
- P&C ceramic porcelain terminal block
- Mounting
- Two-hole foot bracket
- Testing
- Routine test on every heater
- Origin
- Made in Egypt
Dimensions and terminal details are in the datasheet, available on request.
