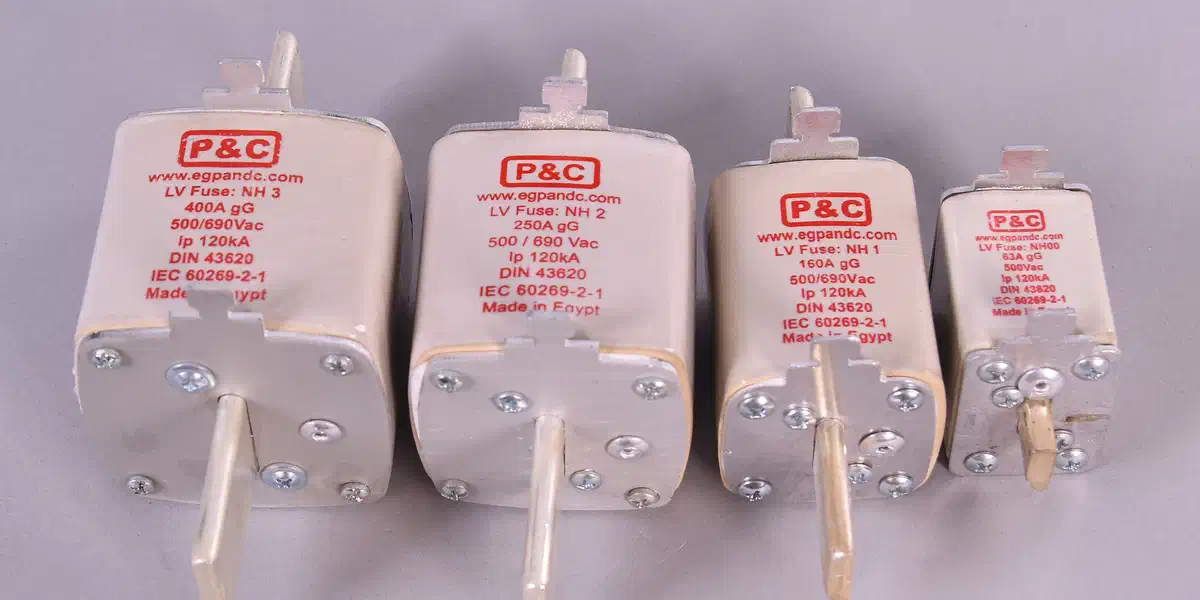

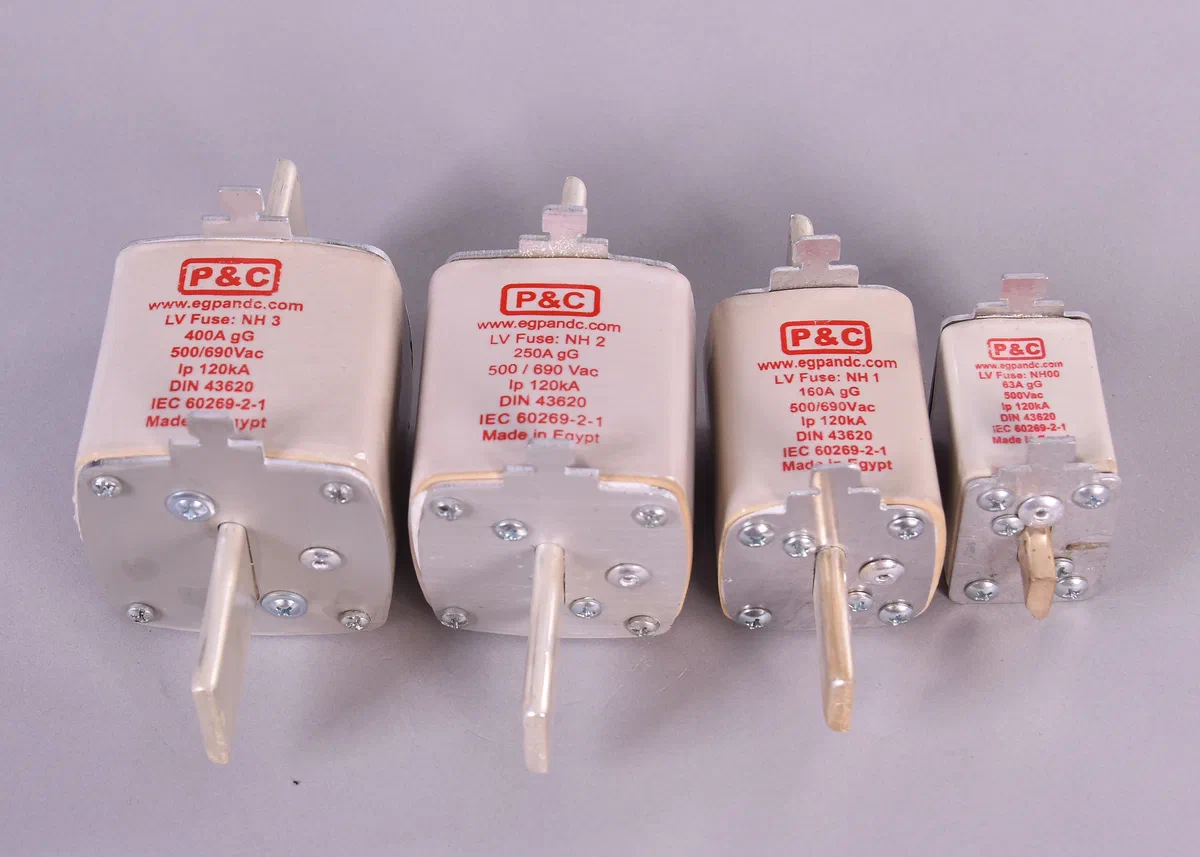

General-purpose (gG) low-voltage high-breaking-capacity fuse-links in the standard NH sizes for feeder, cable and transformer-secondary protection. Ceramic body and silver-plated copper blade contacts. Dimensions to DIN 43620, so they interchange with any NH-system base.
Sizes
- NH00
- up to 160 A
- NH01
- 160 – 250 A
- NH02
- 250 – 400 A
- NH03
- 400 – 630 A
Ratings
- Rated voltage
- AC 500 V / 690 V
- Utilisation category
- gG (full-range, general purpose)
- Breaking capacity
- 120 kA (per product label)
- Frequency
- 50 Hz
- Standard
- IEC 60269-2-1 · DIN 43620
- Contacts
- Silver-plated copper
- Origin
- Made in Egypt
