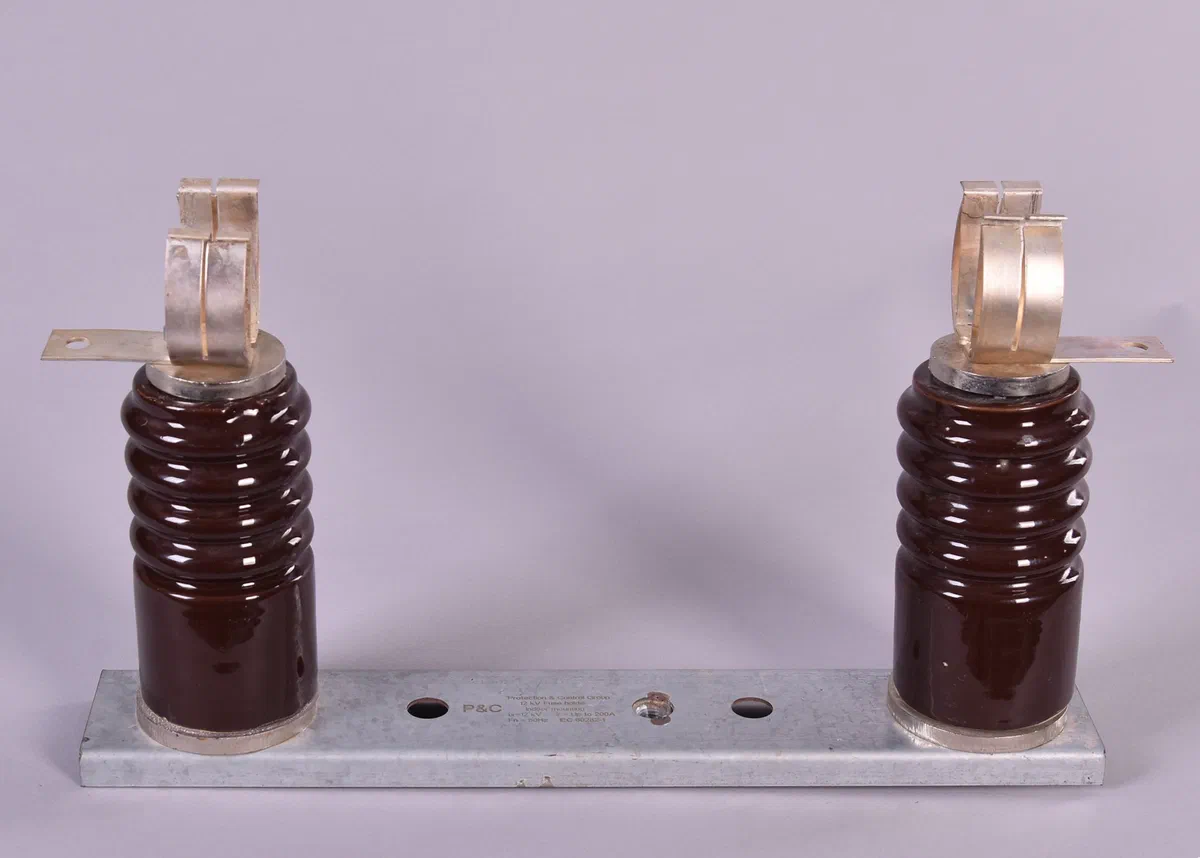

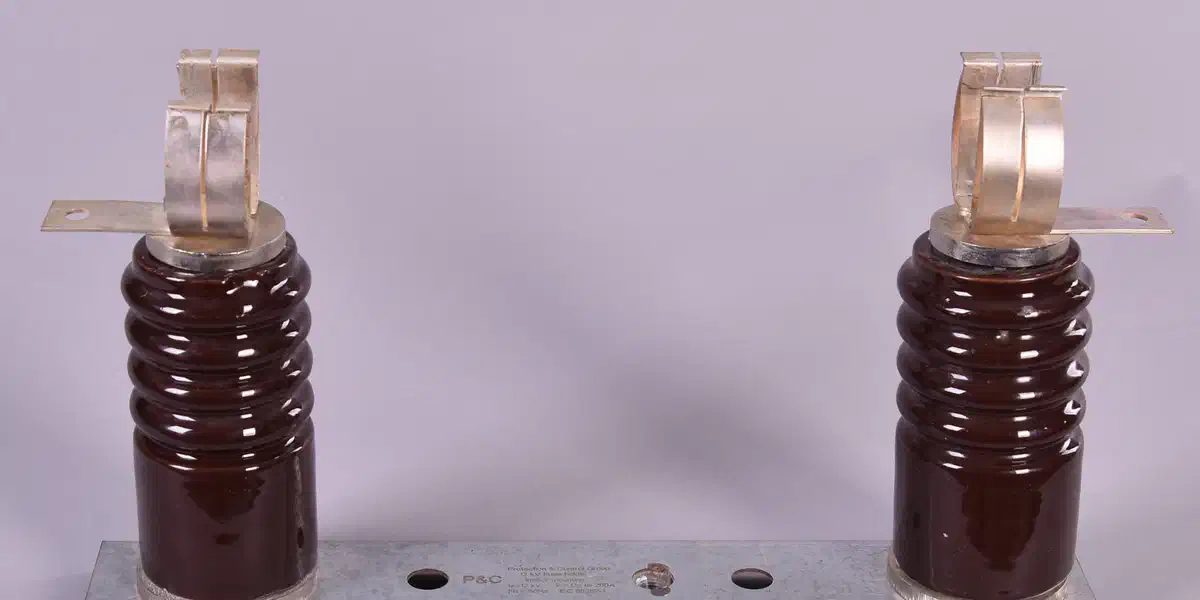

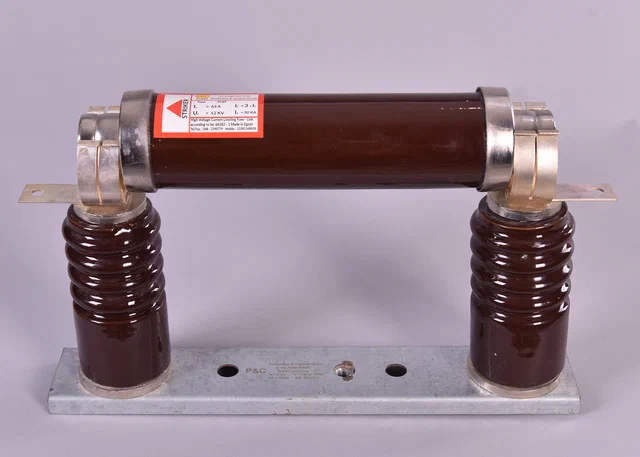

Open-type fuse bases with two P&C post insulators — epoxy cast resin or glazed porcelain — on a plated steel base and spring contacts sized to the matching PCEF fuse-link. For indoor switchgear, transformer-protection cubicles and compact substations.
- Rated voltage
- 12 kV · 24 kV
- Rated current
- 6 A – 200 A
- Insulators

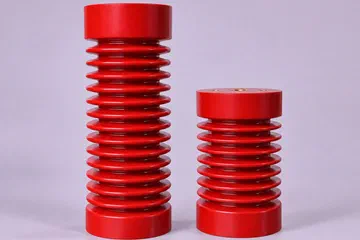

- Epoxy cast resin (see insulators) or glazed porcelain — both P&C-made
- Rated frequency
- 50 Hz
- Mounting
- Indoor
- Standard
- IEC 60282-1 (as marked on the base)
- Base
- Plated steel
- Contacts
- Spring contacts, sized to the PCEF fuse-link
- Origin
- Made in Egypt
Fixing dimensions and drawings are available on request.
